Labeling Instances#
Effortless Object Labeling with Minimal Points: Automated Polygon Generation using Segment Anything Models#
What should you label ?#
Due to Annolid using an instance segmentation approach, it is very versatile in what you want to label. We use polygons & keypoints to label region of interest (e.g. Vole_1, Mouse_1, Mouse_2, Frog, tail_base, nose…) or to capture interesting behaviors or feature (e.g. rearing, social_interaction, urine_sample …).
Here is an example image :
Labelling in done on a frame by frame basis. We’ll show you how to label zones in a given frame. Start the Annolid GUI. Click the ‘Open dir’ button and select the directory where you exported your images in the previous step. All the extracted images are shown in File List in the bottom right. Select the first image you want to annotate. Click the ‘Create Polygon’ button and delineate the structure/zone you want to label. When you finish labelling your zone, you can give it a name that will appear in the ‘Polygon Labels’. Repeat until all the desired zones are labelled. You can adjust or delete the polygons by clicking on the ‘Edit Polygon’ button. Then click the polygon to be edited and directly edit the nodes. If you want to delete it, once you selected it, just click the ‘delete Polygon’ button. When done, save the zone information to a json file by clicking the Save icon.
Note
If you need to delinate something other than a Polygon (you need a keypoint for example), then right click directly on the image and and click ‘Create Point’. You can also create Rectangle, Circle, Line or LineStrip.
Save Labels#
In the previous step, we delinated zone and their associated labels. Those label need to be save using the ‘Save Labels’ button.
Note
You can manually edit those label by openning the label file and adding/removing labels. Those will then appear inside the GUI.
Warning
If you manually edit the label file, do not remove the first 2 lines ‘__ignore__’ and ‘_background_’
Here is a video to guide you through the process:
To help guide you through the process we made the following video:

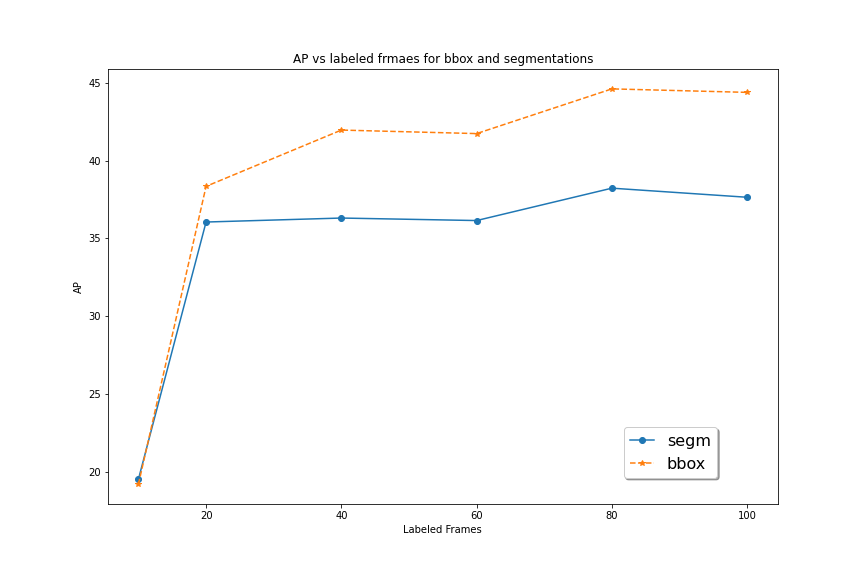

Depending on your behavioral apparatus and overall configuration, Annolid might need very few images to perform accurage instance segmentation. We recommend as a first pass to label ~100 frames.
Tracking and re-identification#
To link instances across frames, we treat each instance as its own class across frames. So if you want
to track multiple animals : you need to label each animal as a separate instance (Vole_1, Vole_2 …).
to generalize recognition across animals or videos : you need to label multiple animals as examples of the same instance (Vole).
Video example courtesy of Lindsay Sailer and Alex Ophir:
