Workflows

This page summarizes the main workflows that are supported by the current Annolid codebase.

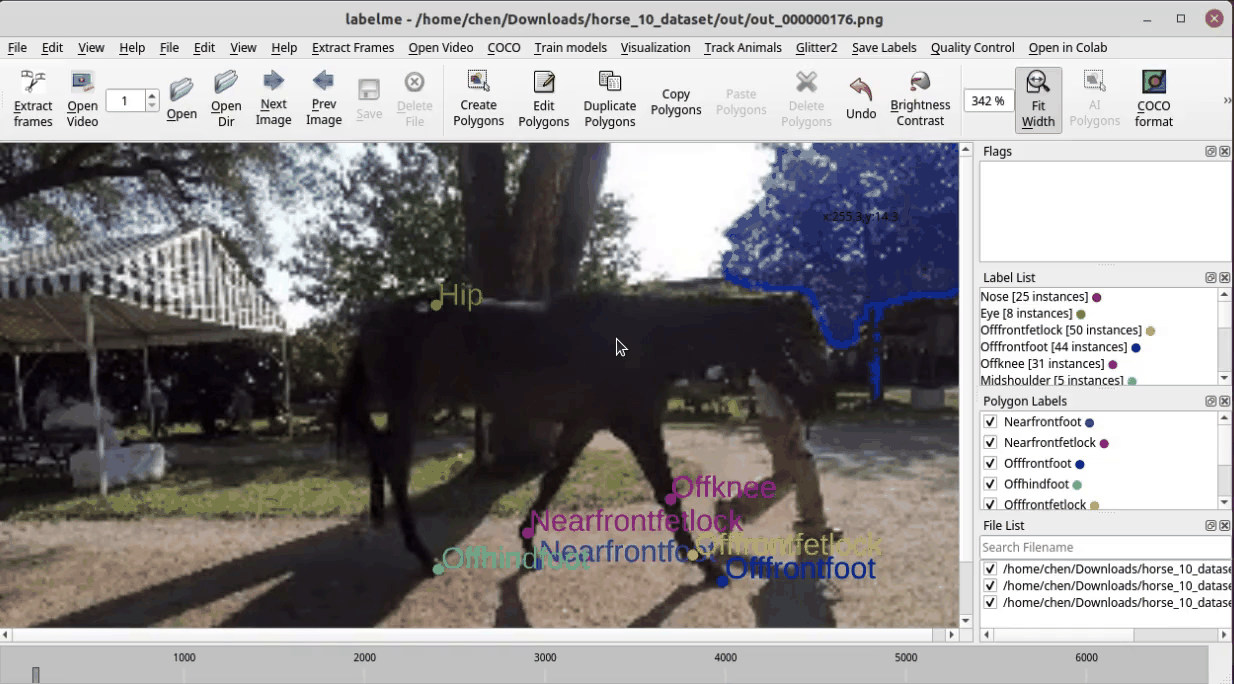

1. Standard GUI Video Workflow

This remains the core Annolid path for most users.

  1. Launch the GUI with annolid.
  2. Open a video directly in the GUI.
  3. Move to a representative frame.
  4. Label instances, zones, keypoints, or behavior events.
  5. Run tracking or propagation from that frame.
  6. Review difficult frames and correct identity or segmentation errors early.
  7. Export annotations or use them for training/inference workflows.

Practical notes:

  • Direct video labeling is supported; frame extraction is optional, not mandatory.
  • Use stable instance labels when cross-frame identity matters.
  • Review overlap, occlusion, and high-motion segments before scaling to long runs.

2. Annolid Bot Workflow

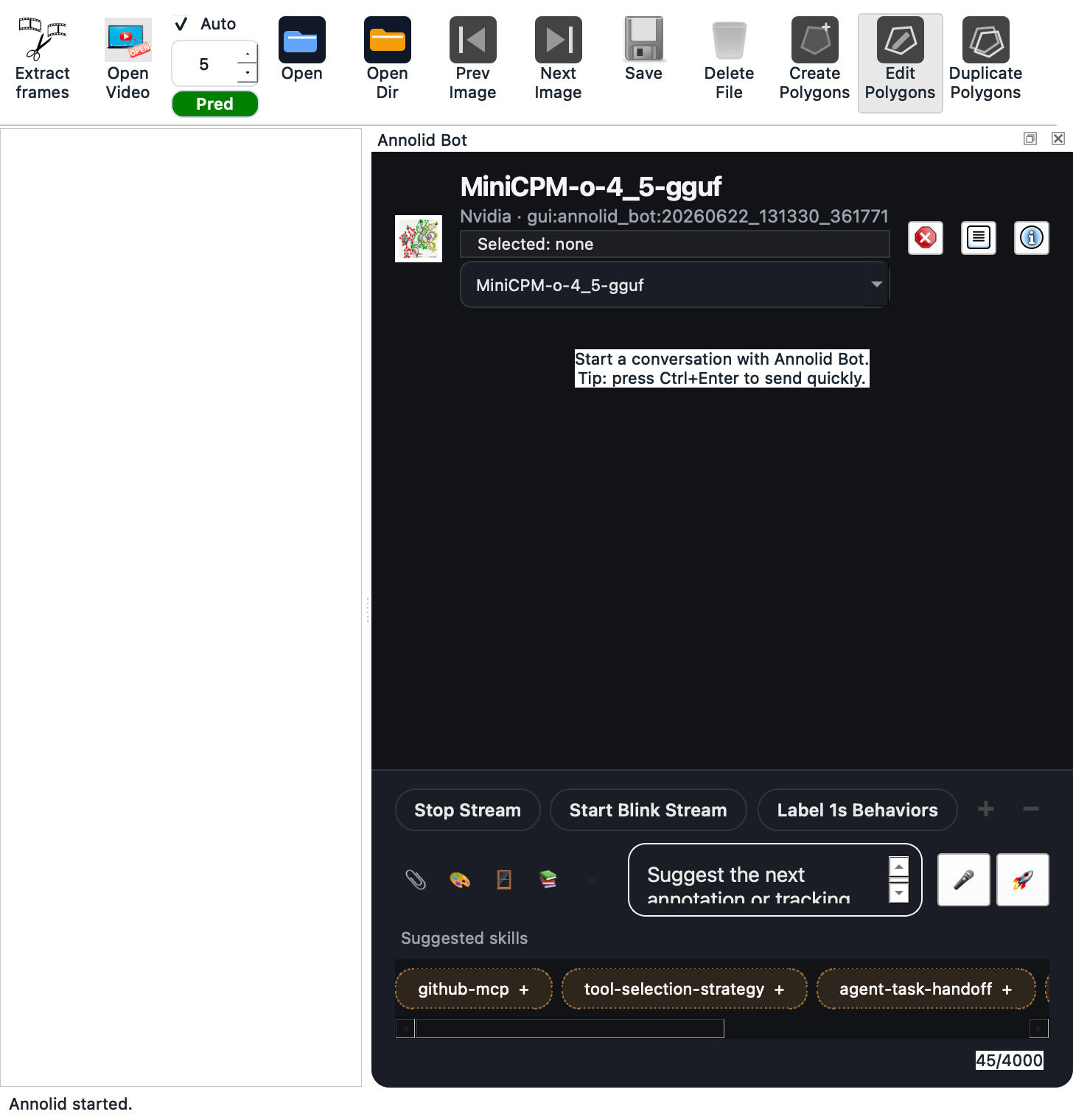

Annolid Bot runs inside the GUI as a dedicated right-side dock.

Current bot workflow highlights:

  • multimodal chat against the current GUI context,
  • optional canvas or window sharing,
  • speech input and reply read-aloud controls,
  • optional web/MCP/browser tools depending on configuration,
  • model/plugin execution against videos through bot tools,
  • Box file operations through natural-language requests such as listing, searching, downloading, or uploading project files,
  • draft-and-send support for configured Zulip targets from the bot UI.

When you use background integrations such as Zulip, WhatsApp, calendar services, or Box, the agent config is loaded from the Annolid agent config path, not the LLM settings file.

For Google Calendar, Annolid now prefers an existing cached token by default. If you want the agent to perform first-run OAuth authorization, set tools.calendar.allow_interactive_auth=true explicitly in the agent config and run that flow from an interactive session.

For Box, you can bootstrap OAuth with agent-box-auth-url and agent-box-auth-exchange; when Box uses an org-specific auth host, pass --authorize-base-url such as https://ent.box.com or https://my_org_xxx.account.box.com. The GUI also exposes editable Box auth fields for the same settings, including client secret, suggests http://localhost:8765/oauth/callback as the local redirect URI, persists the callback URL across sessions, and starts a temporary local callback listener so Box does not bounce the browser to a dead localhost page. Use http:// for local redirects; https://localhost/... will not work with the local listener. When tools.box.auto_refresh=true, the Box tool will refresh expired access tokens using tools.box.refresh_token.

See:

3. CLI Model Workflow

The current terminal entry point is annolid-run.

COCO dataset handling for model workflows is documented in COCO Data Flow.

Useful commands:

annolid-run --help
annolid-run list-models
annolid-run help train
annolid-run help predict
annolid-run help train <model>
annolid-run help predict <model>

Annolid supports plugin-oriented train/predict flows for multiple backends. Shared YAML run-config templates live under annolid/configs/runs/.

Built-in model help now starts with curated groups such as Required inputs, Model and runtime, and Training controls before the full flag list.

Example:

annolid-run train dino_kpseg --run-config annolid/configs/runs/dino_kpseg_train.yaml

If you want the GUI agent to perform read-only CLI inspection or explicitly invoke Annolid-native commands, use the dedicated typed tool flow described in Annolid Agent and annolid-run.

4. Behavior Analysis Workflow

For behavior-centric projects, a typical path is:

  1. annotate events or frame-level flags in the GUI,
  2. review time ranges and fix labeling drift,
  3. export event data,
  4. summarize or post-process results with the CLI utilities.

Example time-budget command:

python -m annolid.behavior.time_budget exported_events.csv \
    --schema project.annolid.json \
    --bin-size 60 \
    -o time_budget.csv

5. Depth Workflow

The current GUI includes Video Depth Anything integration.

Use:

  • View -> Video Depth Anything...
  • View -> Depth Settings...

The current implementation can auto-download checkpoints when needed and writes a depth.ndjson sidecar plus optional rendered outputs depending on the selected save options.

6. Optional 3D Workflow

Annolid includes an optional SAM 3D reconstruction path from the GUI when configured.

Use cases:

  • reconstruct a selected instance on the current frame,
  • save a PLY result and sidecar metadata,
  • optionally view the result in the bundled VTK-based viewer if available.

See SAM 3D.

7. Simulation and FlyBody Workflow

Annolid now includes a simulation-oriented CLI path for converting pose tracks into backend-specific targets and enriched NDJSON outputs.

Current capabilities:

  • generate FlyBody mapping templates,
  • validate mappings with --dry-run,
  • lift 2D keypoints into 3D from depth.ndjson,
  • smooth trajectories and fill small gaps before fitting.

Start here:

annolid-run help predict flybody
annolid-run predict flybody --pose-schema pose_schema.json --write-mapping-template flybody.yaml
annolid-run predict flybody --input pose.ndjson --depth-ndjson depth.ndjson --mapping flybody.yaml --out-ndjson flybody.ndjson --dry-run

See Simulation and FlyBody.

  • Keep changes incremental.
  • Prefer short label -> run -> review loops.
  • Treat on-disk annotation files as the contract.
  • Validate new model workflows on a small subset before scaling to a full dataset.
